Honda Civic 1996–2000 Adjustable Coilover Kit

Adjustable Suspension

Coilover Suspension Kit for Honda & Acura Applications

Upgrade your suspension setup with a complete front and rear coilover system designed to provide adjustable lowering, high-rigidity springs and a twin-tube shock configuration for street-oriented use.

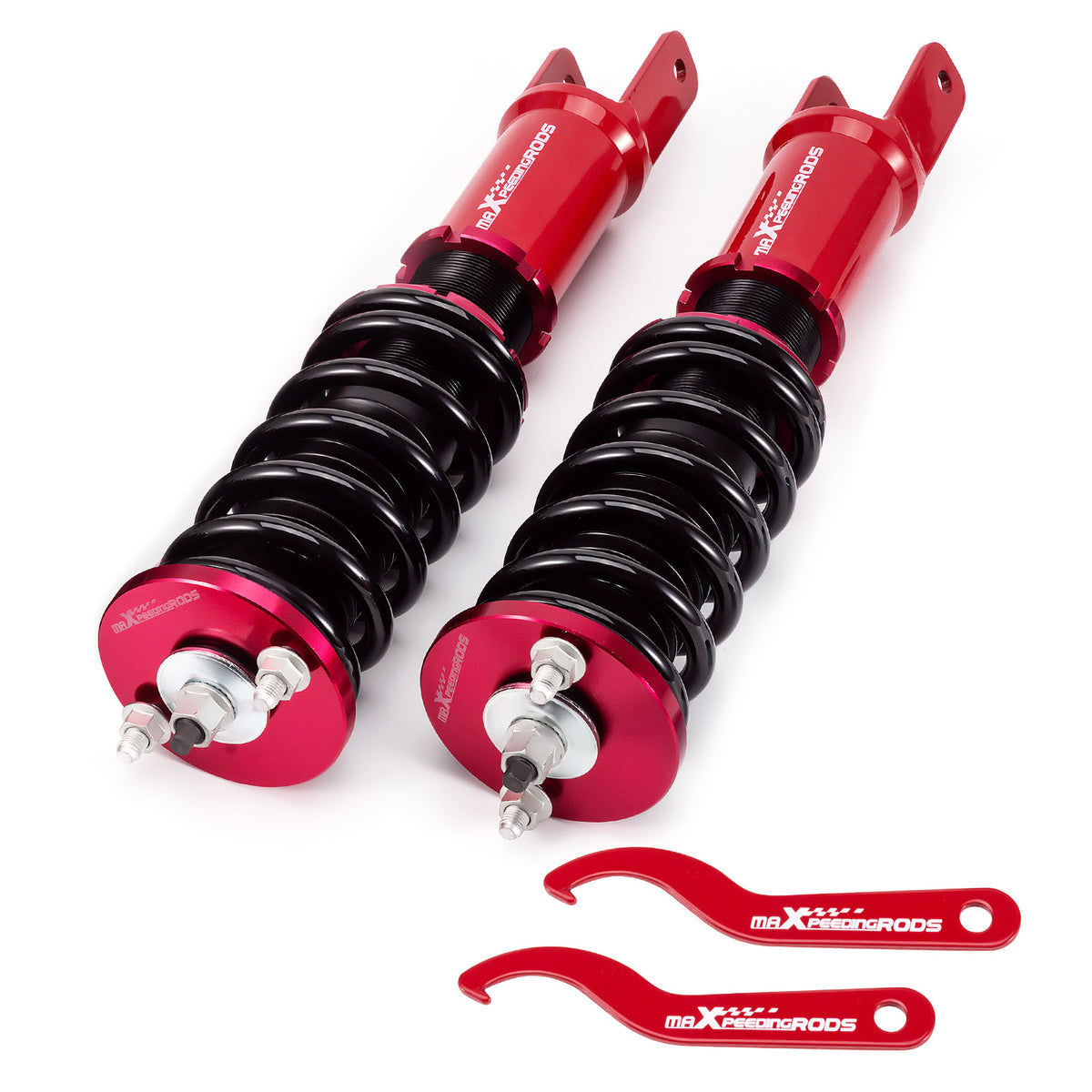

Red adjustable coilover suspension kit for compatible Honda and Acura vehicles

Performance & Adjustment

Built for an Adjustable Lowered Setup

A complete suspension package combining adjustable ride height, reinforced components and street-focused twin-tube shock construction.

1–3 Inch Lowering Range

Designed to lower the vehicle approximately 1 to 3 inches. This kit is not designed to maintain the original factory ride height.

Twin-Tube Design

Twin-tube shock construction designed to provide a more street-oriented ride configuration.

55CrSi Steel Springs

High-rigidity cold-bent 55CrSi steel coil springs provide the foundation of the suspension system.

Aluminum Upper Mounts

Aluminum upper mounts use hardened rubber bushings designed to help reduce transmitted suspension noise.

T-6061 Aluminum Components

Supplier specifications indicate T-6061 billet aluminum construction with an anodized finish for strength and corrosion protection.

Adjustment Tools Included

A pair of adjustment spanner wrenches is included for coilover height adjustment.

Suspension System

Complete Front & Rear Coilover Set

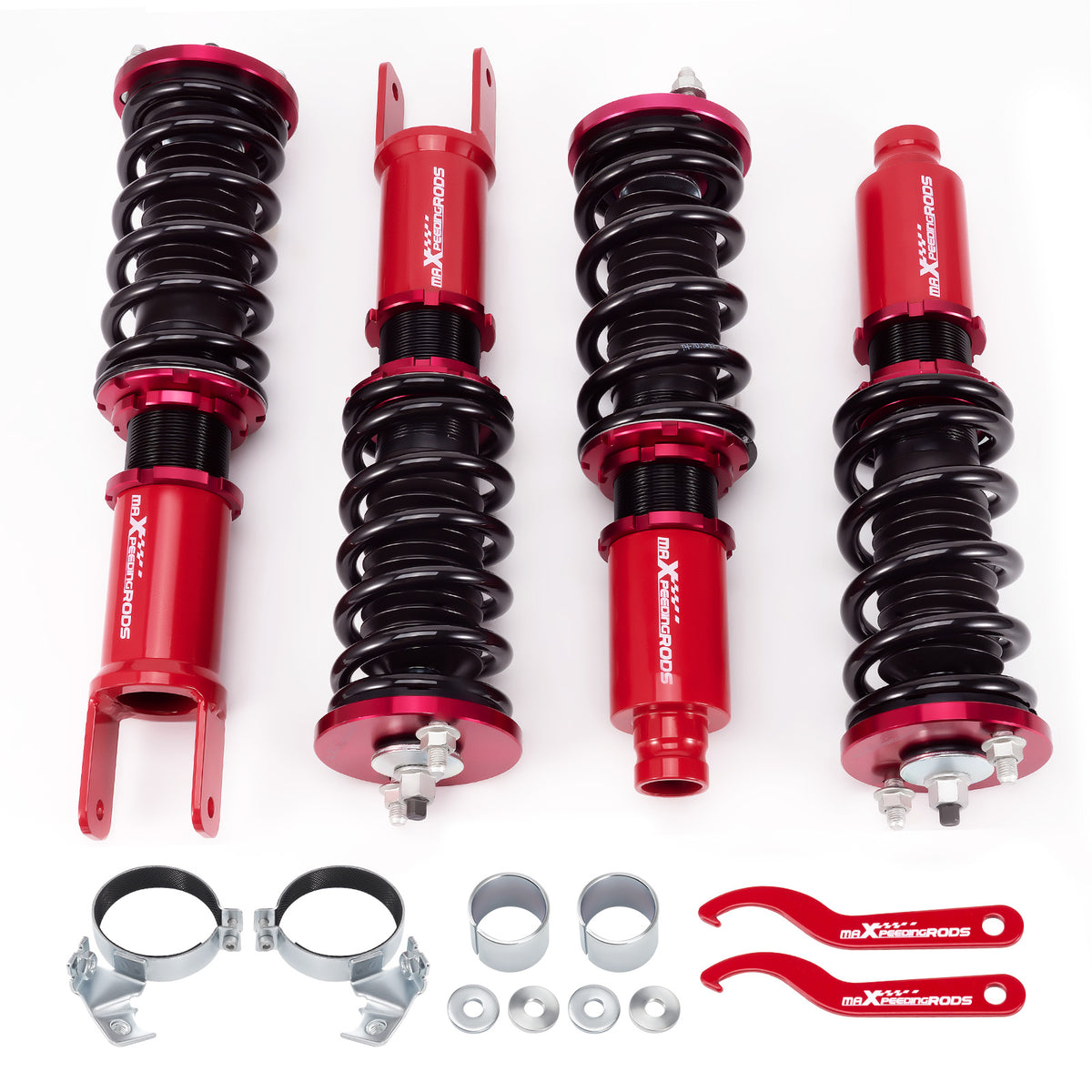

Coilover suspension components and adjustable spring assemblies

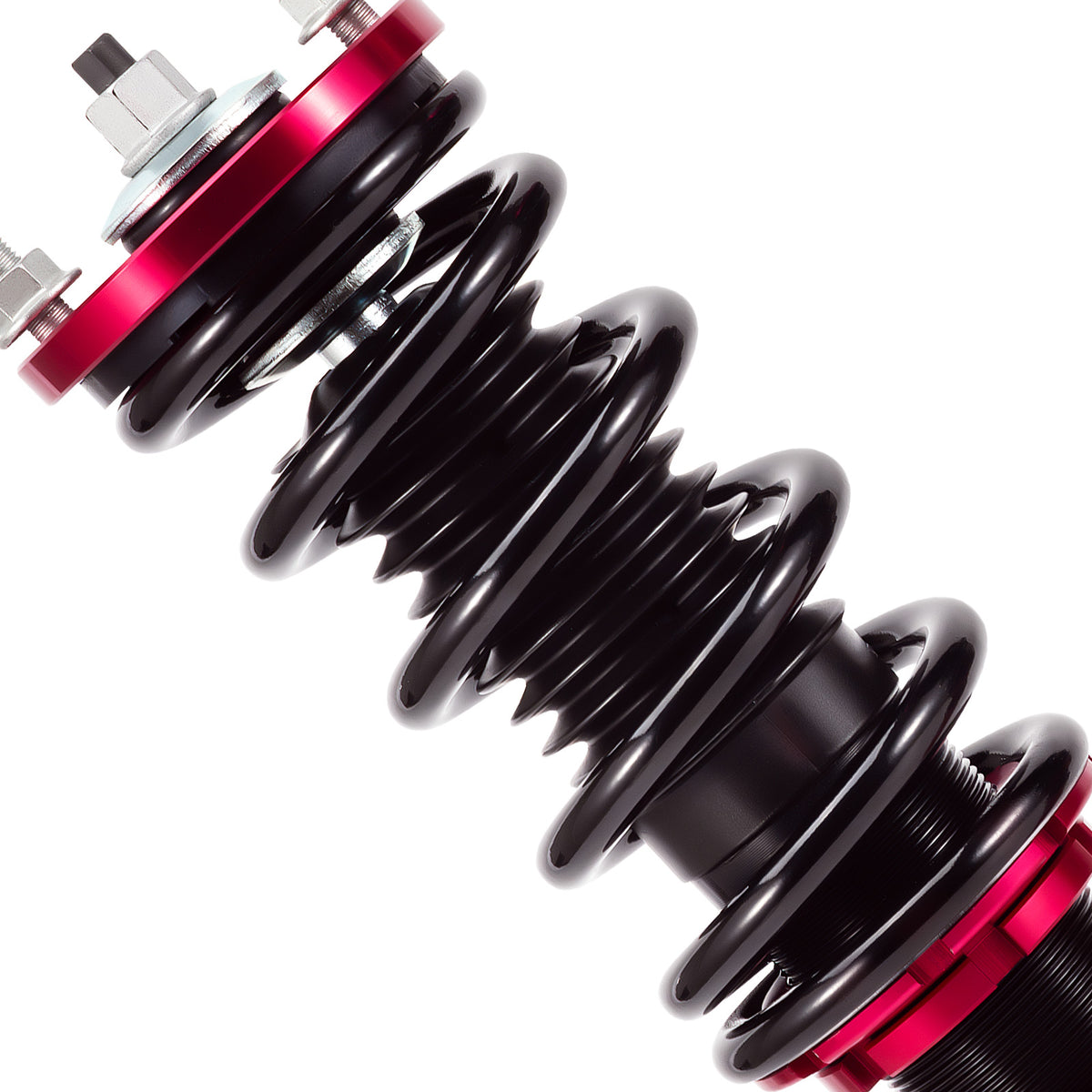

Detailed view of red coilover suspension system

Ride Height

Adjustable Lowering from 1 to 3 Inches

Important: This suspension kit is specifically designed for a lowered vehicle configuration. According to supplier specifications, the adjustment range provides approximately 1–3 inches of lowering and will not retain the original factory ride height.

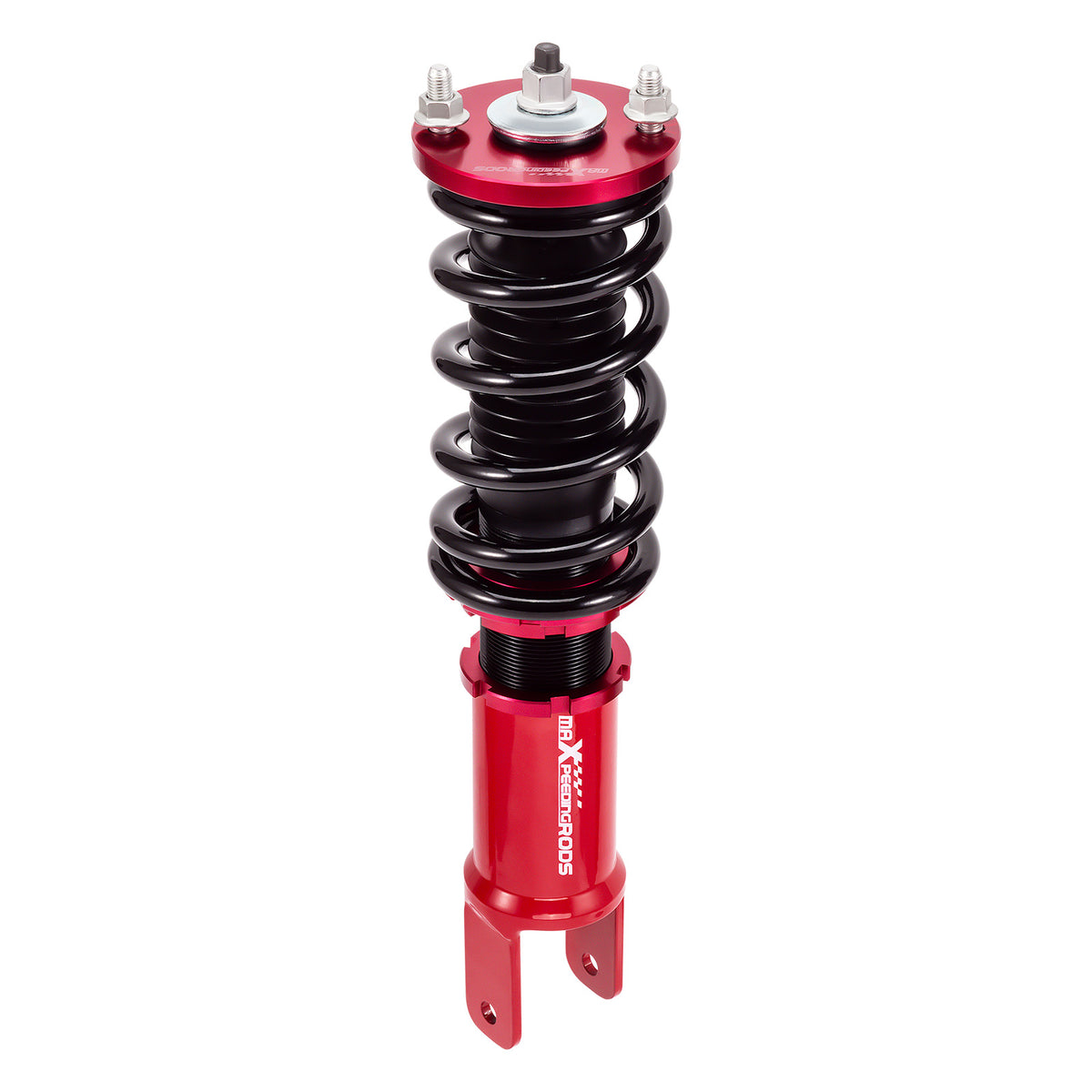

Technical details of adjustable coilover suspension components

Vehicle Compatibility

Check Fitment Before Ordering

Designed for the rear fork-type bracket applications listed below. Verify your vehicle's year, chassis code and rear suspension mounting configuration before purchase.

Honda Civic — 1988–1991 EC / ED / EE / EF — rear fork-type bracket models only. EC8, EC9, ED2, ED3, ED4, ED5, ED6, ED7, EE1, EE2, EE3, EE4, EE5, EE9, EF1, EF2, EF3, EF4, EF5, EF9.

Honda CR-X — 1988–1991 ED / EE / EF — rear fork-type bracket models only. ED8, ED9, EE6, EE8, EF6, EF7, EF8.

Honda Civic — 1992–1995 EG / EH / EJ — rear fork-type bracket models only. EG3, EG4, EG5, EG6, EG7, EG8, EG9, EH1, EH2, EH3, EH4, EH5, EH8, EH9, EJ1, EJ2, EJ3.

Honda CR-X del Sol — 1992–1995 EG1 — rear fork-type bracket model only.

Honda Civic — 1996–2000 EJ / EK / EM — rear fork-type bracket models only. EJ5, EJ6, EJ7, EJ8, EJ9, EK1, EK2, EK3, EK4, EK5, EK8, EK9, EM1.

Acura Integra — 1990–1993 DA / DB — rear fork-type bracket models only.

Acura Integra — 1994–2001 DC2 / DC4 — rear fork-type bracket models only.

Fitment Note: Some compatible vehicles may require the included sleeves and washers during installation. Professional installation and vehicle-specific fitment verification are recommended.

Technical Construction

Engineered Suspension Components

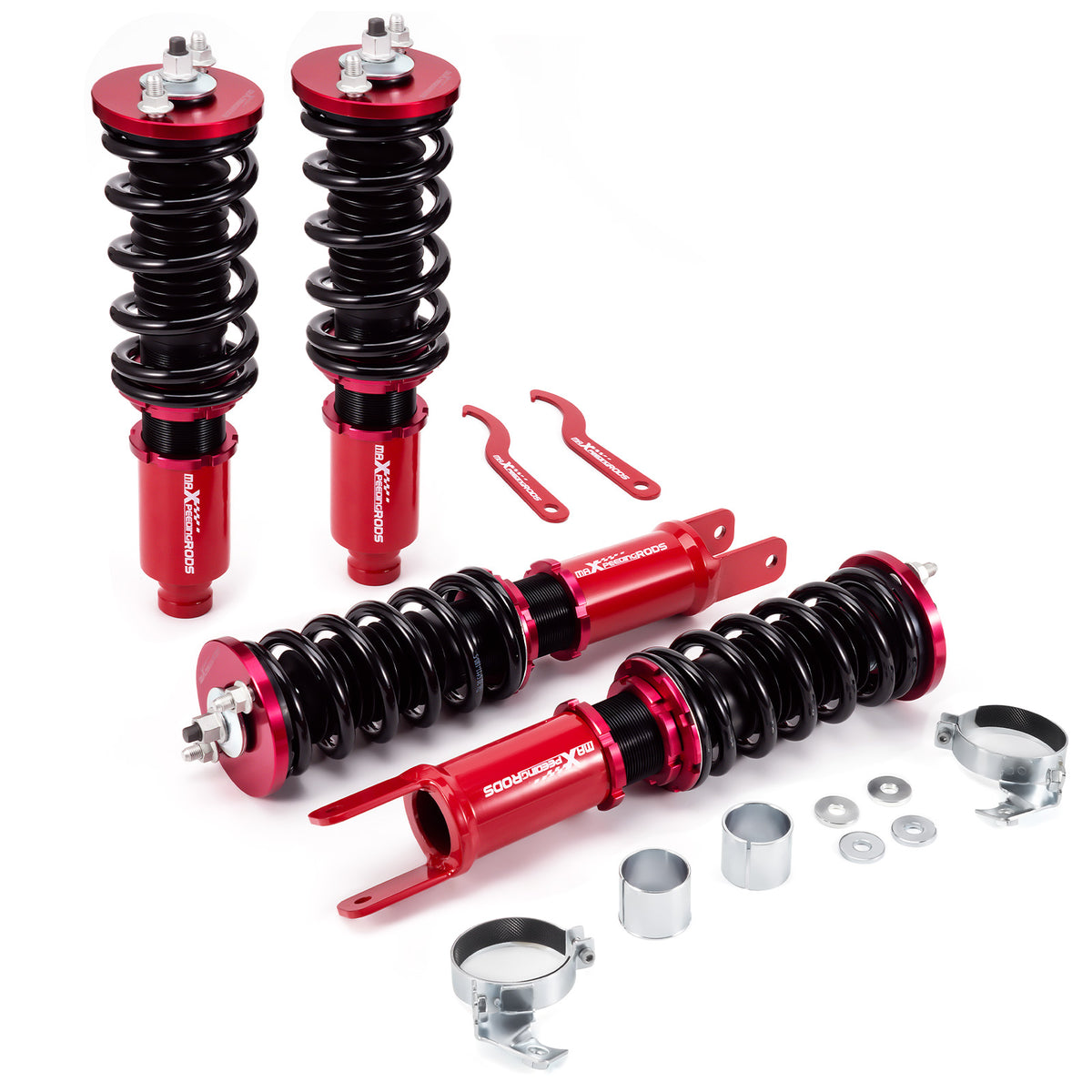

Coilover suspension dimensions and component details

Technical Specifications

Coilover Specifications

Shock Type Twin Tube

Front Spring Rate 8 kg/mm (448 lbs/in)

Rear Spring Rate 5 kg/mm (280 lbs/in)

Front Spring Length 180 mm

Rear Spring Length 180 mm

Height Adjustment Approximately 1–3 in lowering

Front Overall Length 365–410 mm

Rear Overall Length 435–480 mm

Front Rod Diameter 22 mm

Rear Rod Diameter 12.5 mm

Spring Preload 7–10 mm

Front Top Mount Rubber

Rear Top Mount Rubber

Spring Material 55CrSi Steel

Color Red

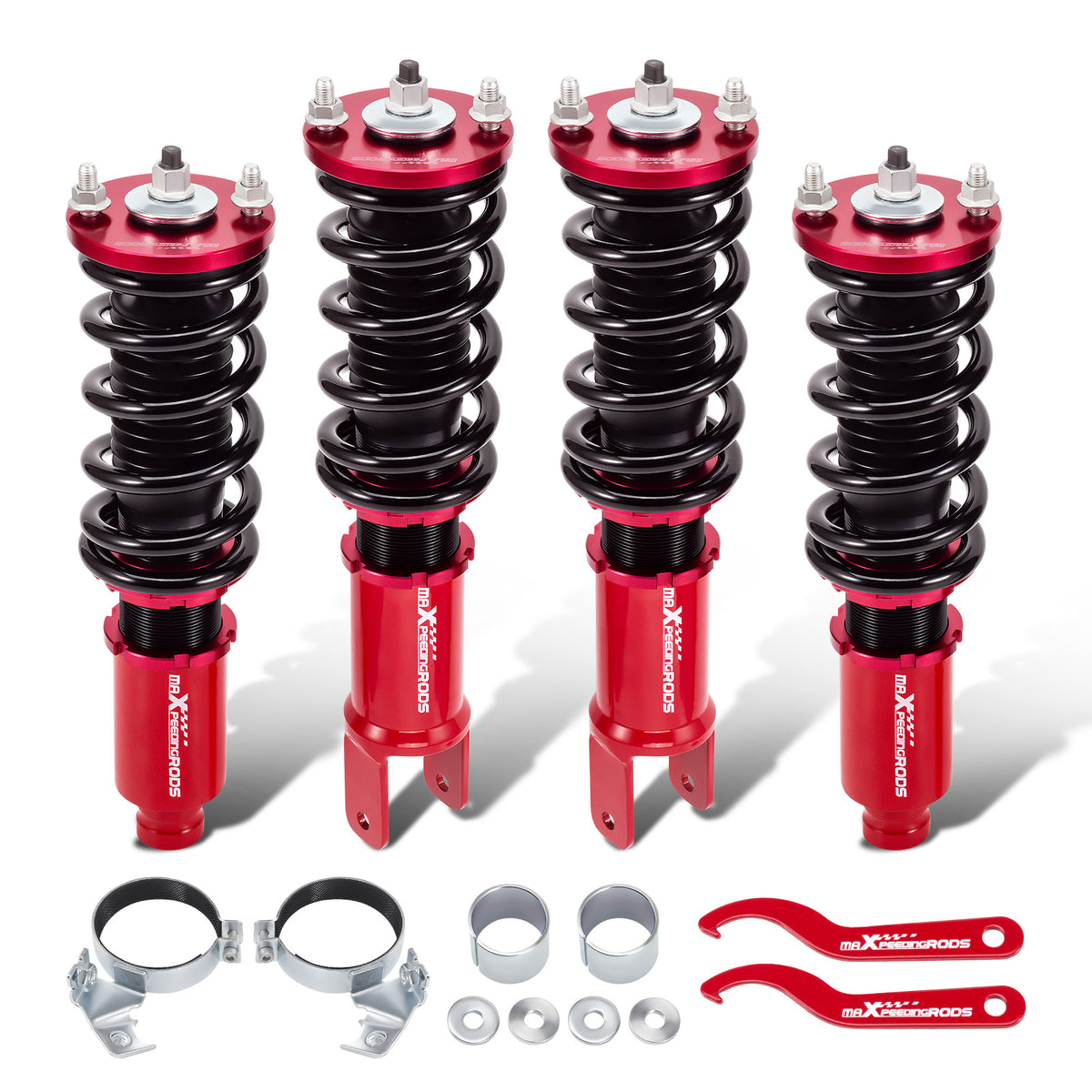

What's Included

Complete Coilover Package

2 × Front coilover assemblies
2 × Rear coilover assemblies
1 × Pair of height-adjustment spanner wrenches
Required sleeves and washers supplied with the kit where applicable

Installation & Safety

Professional Installation Recommended

Suspension components affect vehicle ride height, alignment and handling. Verify vehicle compatibility before installation and have the system installed and adjusted by a qualified automotive professional. A wheel alignment should be performed after suspension installation or ride-height adjustment.

California Proposition 65 Warning: This product carries a California Proposition 65 warning according to the supplier listing.
