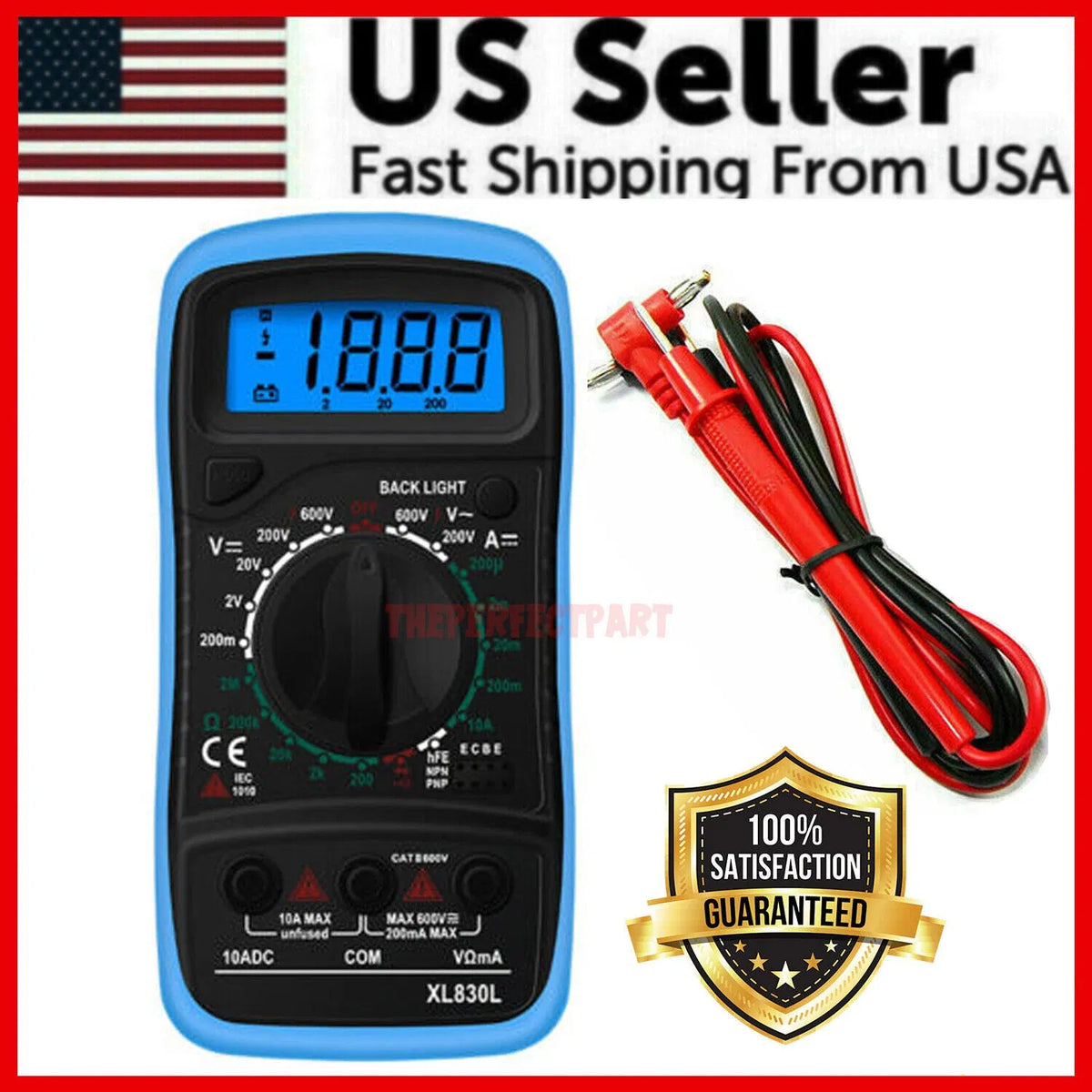

XL830L Digital Multimeter with Backlit LCD & Test Leads
$25.42
Skip to product information
In Stock — 460 available
XL830L Digital Multimeter with Backlit LCD & Test Leads
$25.42
DIGITAL MULTIMETER
One compact tool for everyday electrical and electronics testing
The XL830L combines multiple common measurement functions in one portable meter, including AC/DC voltage, DC current, resistance, continuity, diode and transistor testing.
MULTIPLE TEST FUNCTIONS
Measure, troubleshoot and verify with one handheld meter
Designed for common electrical and electronics checks around compatible circuits, components, appliances and hobby projects.

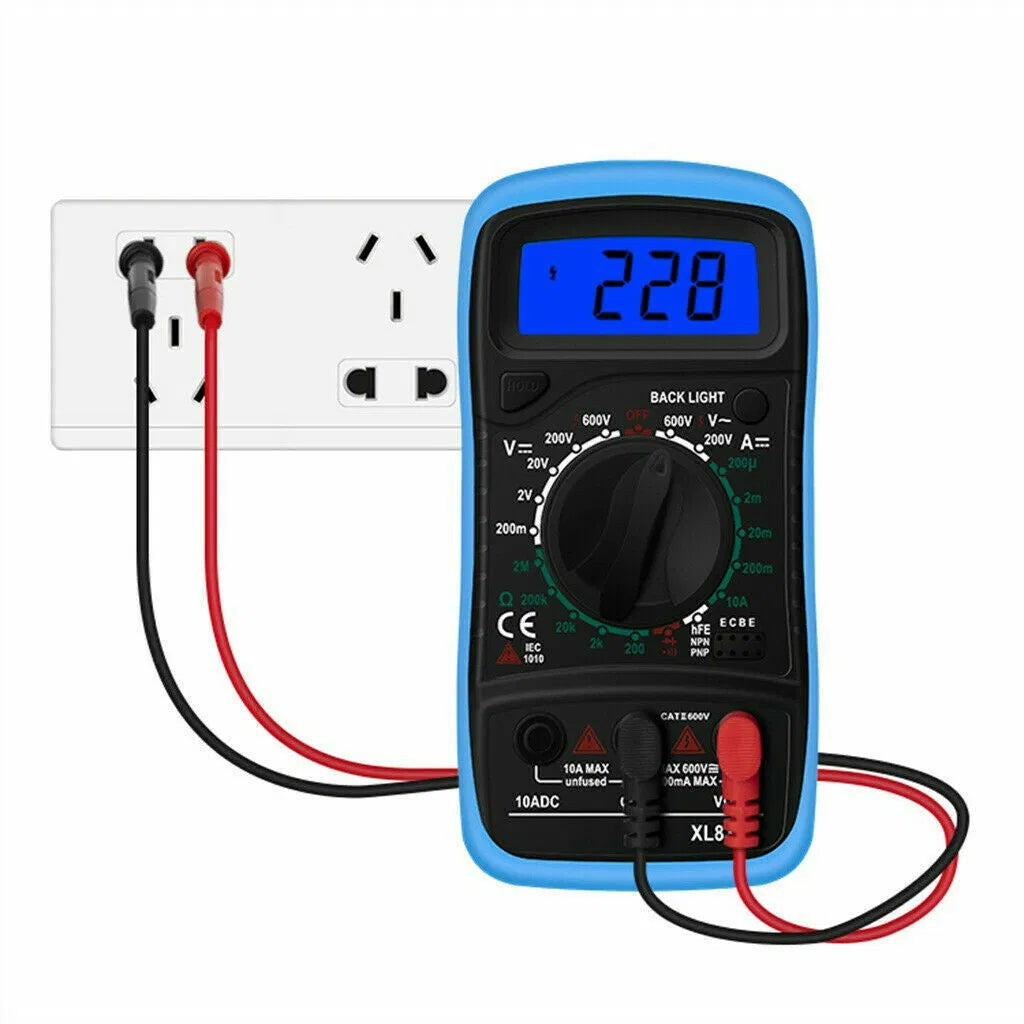

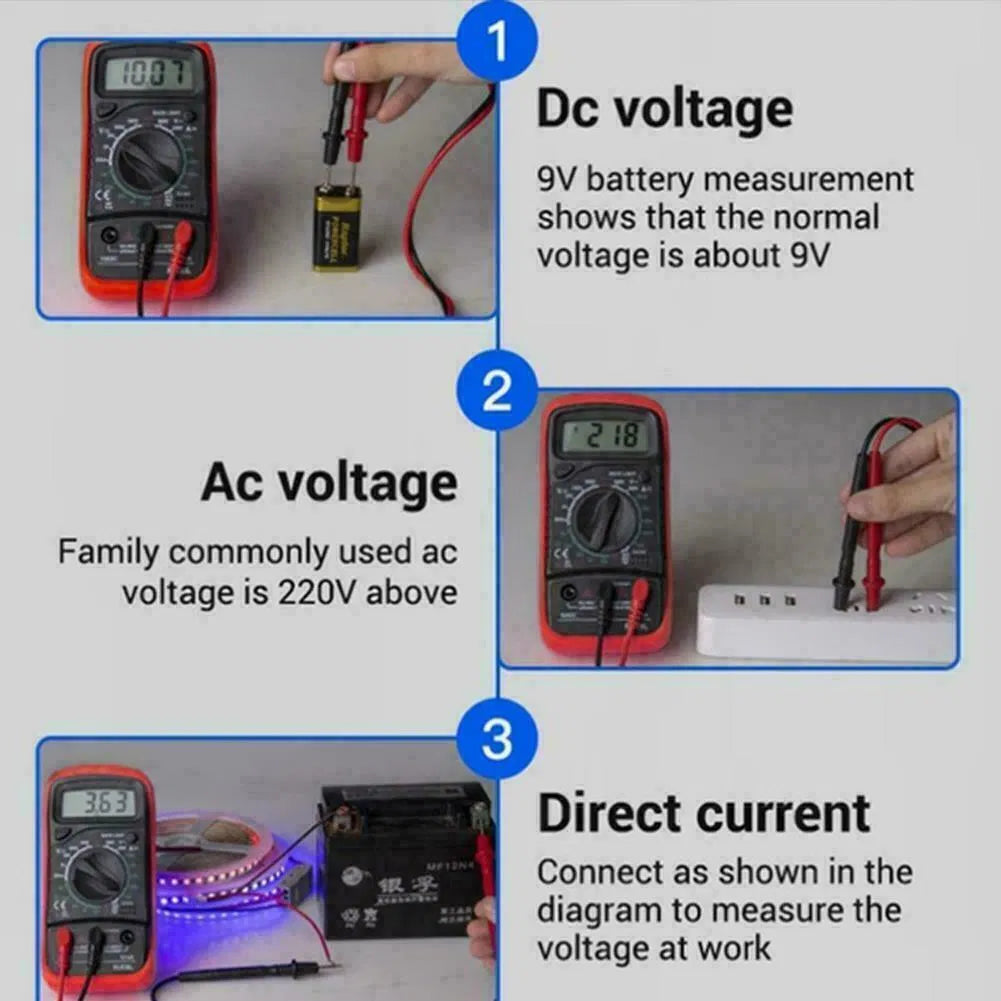

AC Voltage
Measure supplier-listed AC voltage ranges up to 600 V.
DC Voltage
Five selectable DC voltage ranges from 200 mV through 600 V.
DC Current
Multiple selectable DC current ranges with a dedicated high-current input for measurements up to the supplier-listed 10 A range.

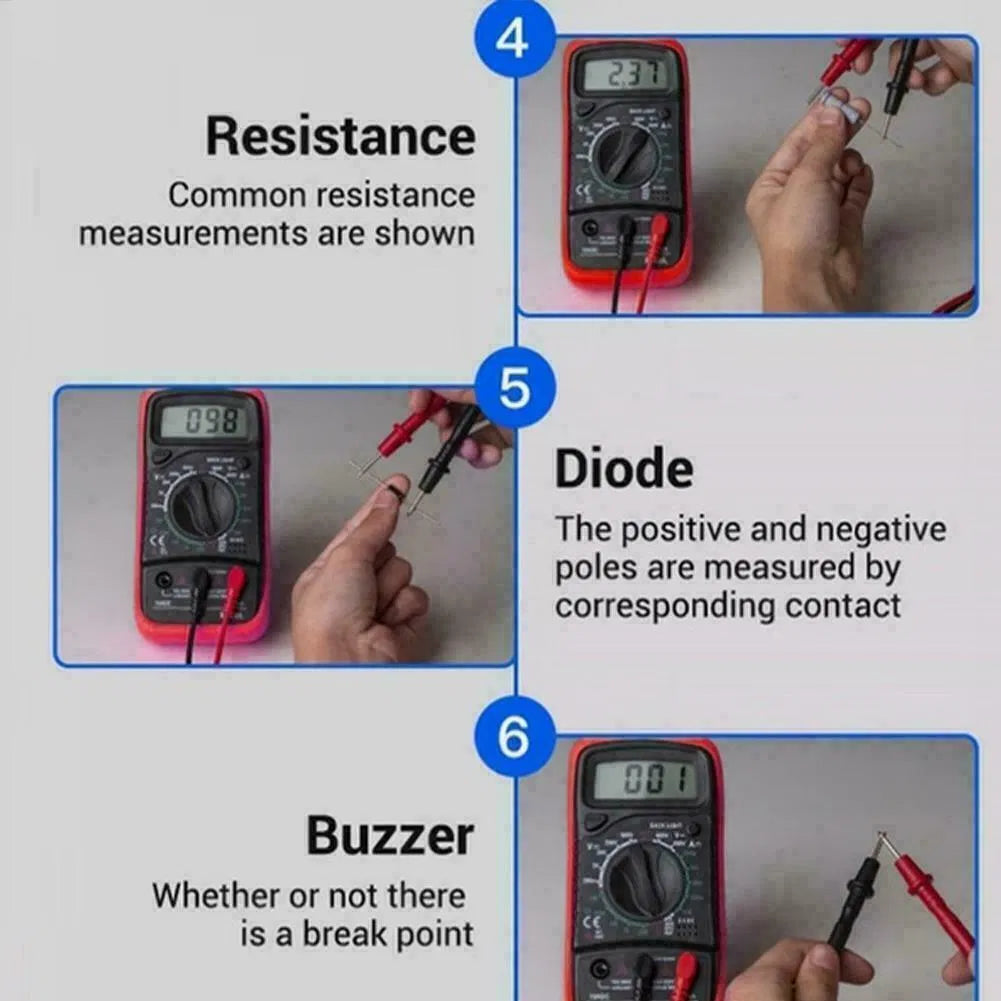

Resistance
Measure resistance across multiple selectable ranges from low-ohm checks through the supplier-listed 2 MΩ range.
Continuity
An audible buzzer provides a convenient indication when continuity is detected.
Diode Test
Designed to display the approximate forward voltage drop of a diode.
Transistor hFE
Integrated socket and selector markings provide supplier-listed NPN/PNP transistor testing functionality.
Data Hold
Freeze the displayed measurement so you can read the value after moving the probes.
BACKLIT DISPLAY
Clear readings when lighting conditions are less than ideal
The LCD display includes a backlight function and dedicated button, making measurements easier to read in cabinets, workbenches, garages and other dimly lit areas.
Controls designed for quick access

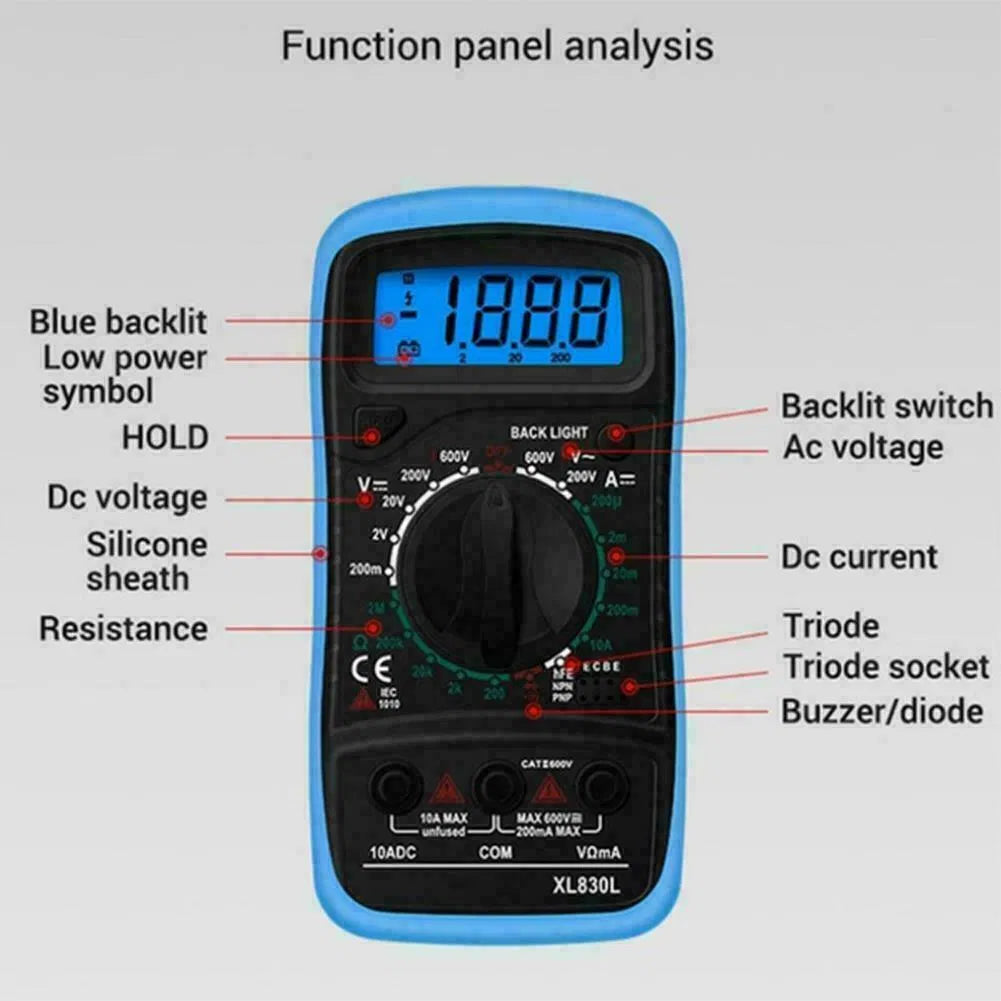

Supplier imagery identifies the backlight switch, data-hold control, rotary function selector, current and voltage input terminals, continuity/diode functions and transistor socket directly on the front of the meter.
PRACTICAL TESTING
Useful for electronics, household checks and troubleshooting
Electronics Projects
Check voltage, resistance, continuity and compatible electronic components during assembly or troubleshooting.
Household Electrical Checks
Suitable for measurements that fall within the meter's supplier-listed ranges and intended use.
Appliance Troubleshooting
Verify electrical values and continuity while diagnosing compatible appliances and circuits.
Automotive & Battery Checks
The DC measurement functions can support basic testing of compatible low-voltage electrical systems.

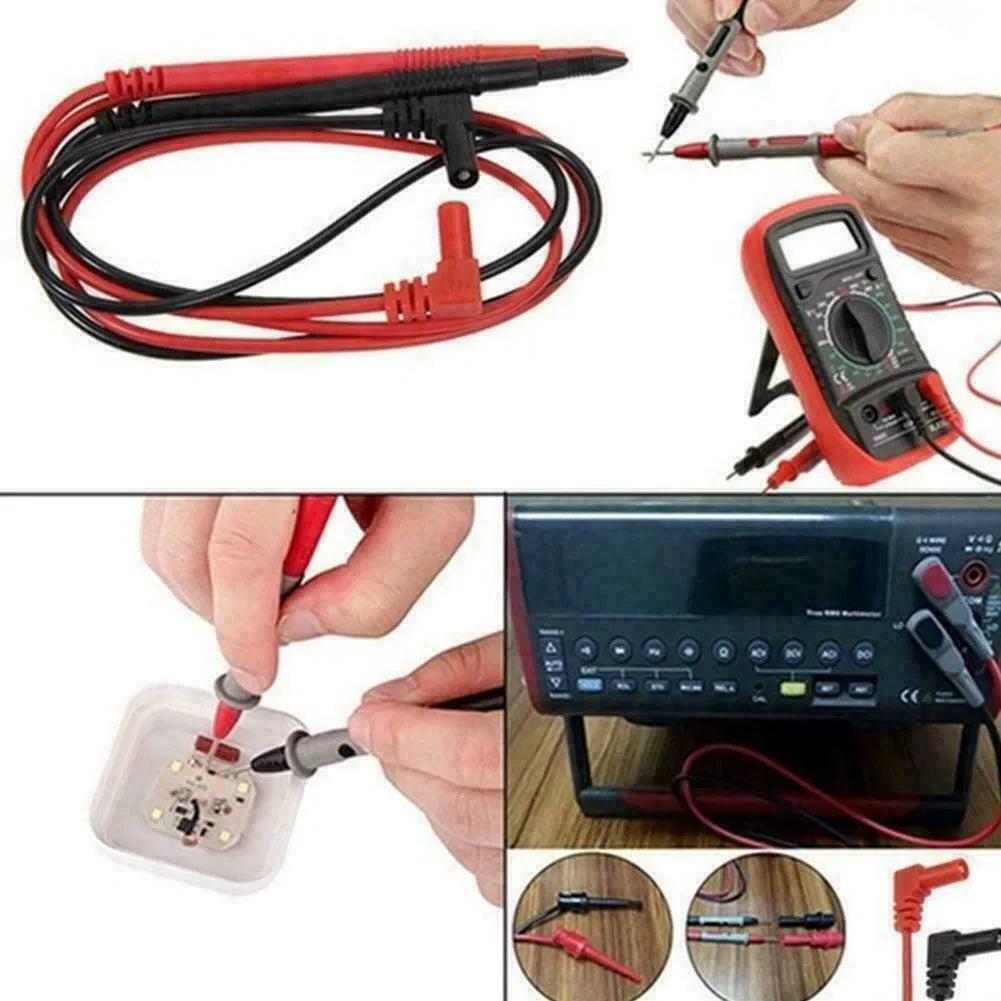

TEST LEADS INCLUDED
Ready for common probe-based measurements
Red and black probe cables are included so you can connect the meter to compatible circuits, components and terminals.
MEASUREMENT RANGES
Supplier-listed voltage and resistance ranges
DC Voltage
200 mV / 2 V / 20 V / 200 V / 600 V
AC Voltage
200 V / 600 V
Resistance
200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ
DC Current
Multiple supplier-listed ranges up to 10 A.
Continuity
Audible buzzer indication
Diode
Approximate forward-voltage-drop test
Transistor
NPN / PNP hFE test function
The imported supplier text contains malformed unit symbols in some low-current resolution specifications. For that reason, those corrupted resolution figures are not reproduced here as verified technical values.
COMPACT WORKBENCH DESIGN
Handheld when you need it, freestanding when you don't

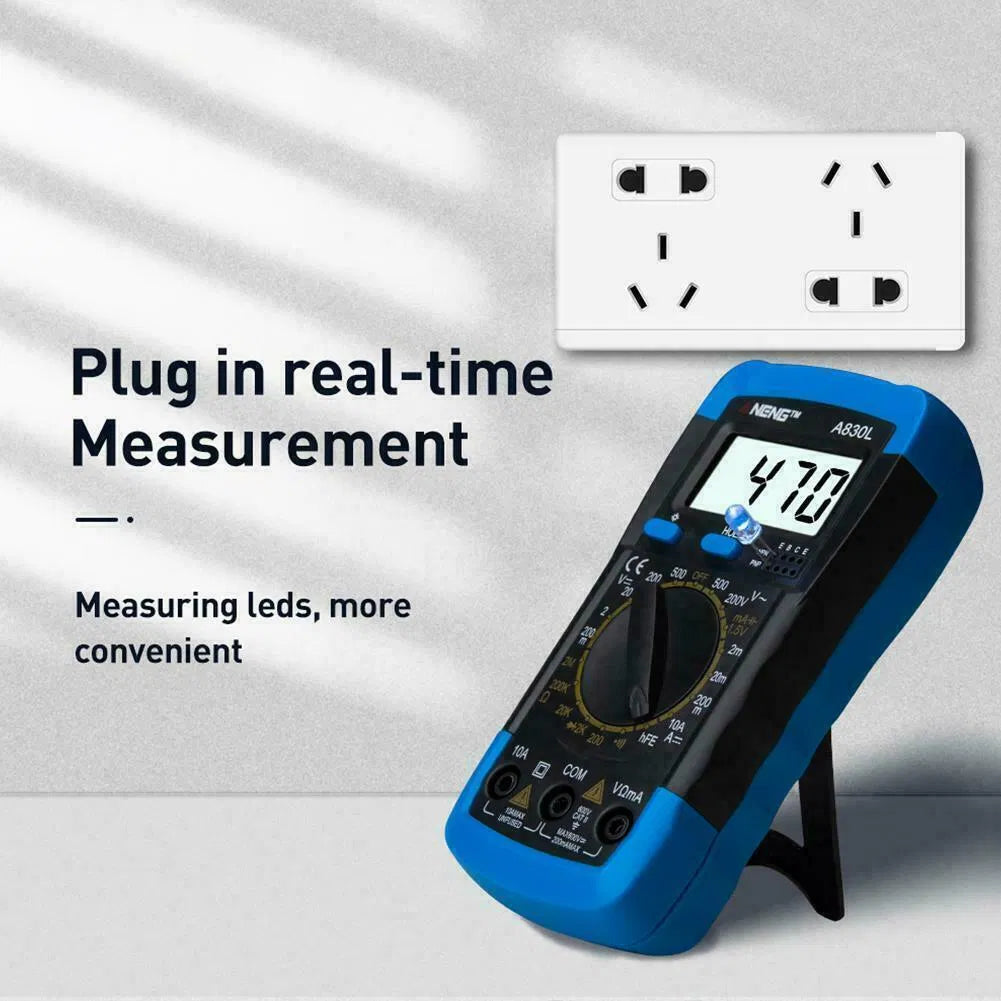

Integrated Kickstand
Prop the meter at an angle on a workbench for easier hands-free display viewing.
Rotary Selector
Select the desired measurement type and range using the central dial.
Compact Form
Portable handheld design for toolboxes, hobby benches and general maintenance work.

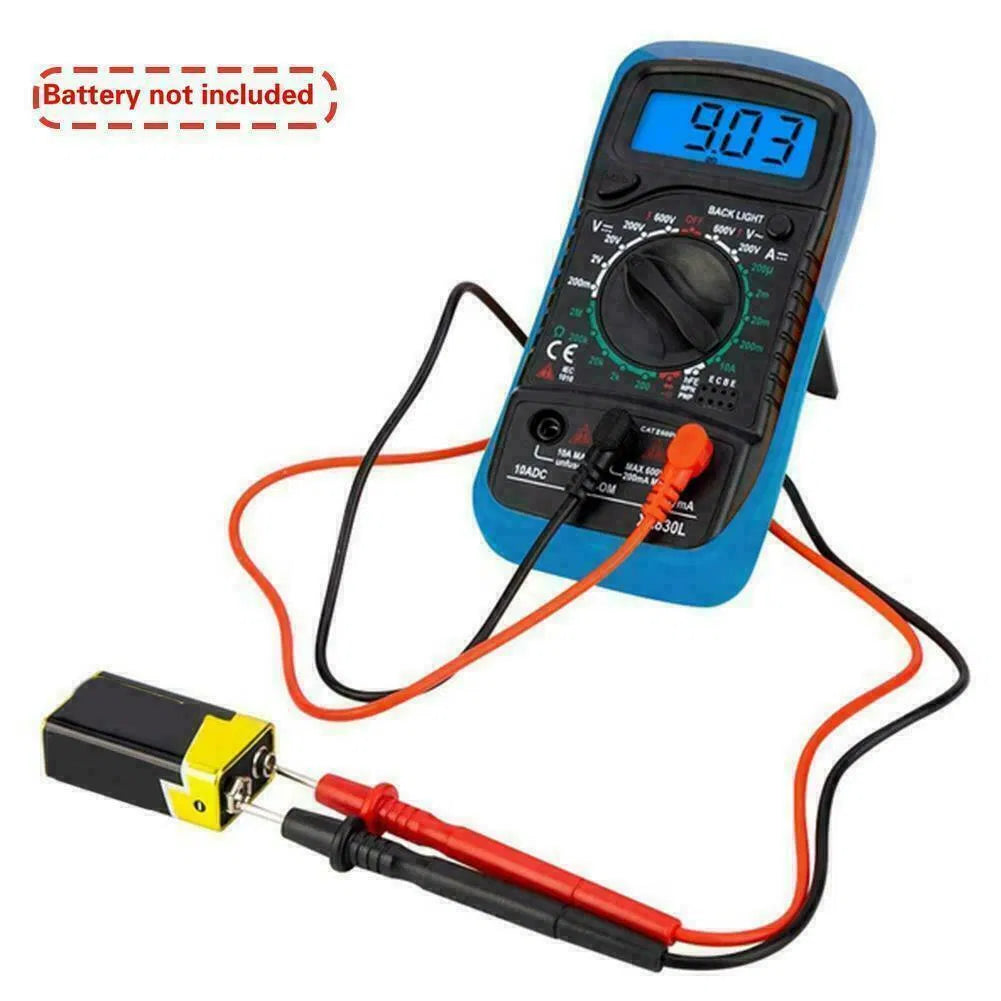

POWER REQUIREMENT
Powered by a 9 V battery
9 V battery is not included.
Install a compatible 9 V battery before first use. The battery is sold separately.
TECHNICAL SPECIFICATIONS
XL830L Digital Multimeter
Model
XL830L
Product Type
Digital multimeter
AC Voltage
200 V / 600 V
DC Voltage
200 mV / 2 V / 20 V / 200 V / 600 V
DC Current
Multiple ranges, supplier-listed up to 10 A
Resistance
200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ
Continuity
Audible buzzer
Diode Test
Yes
Transistor Test
NPN / PNP hFE
Display
Digital LCD with backlight
Data Hold
Yes
Kickstand
Integrated
Power
1 × 9 V battery
Battery Included
No
CJ Listed Weight
454 g / 1.00 lb
Product Dimensions
Not provided by supplier

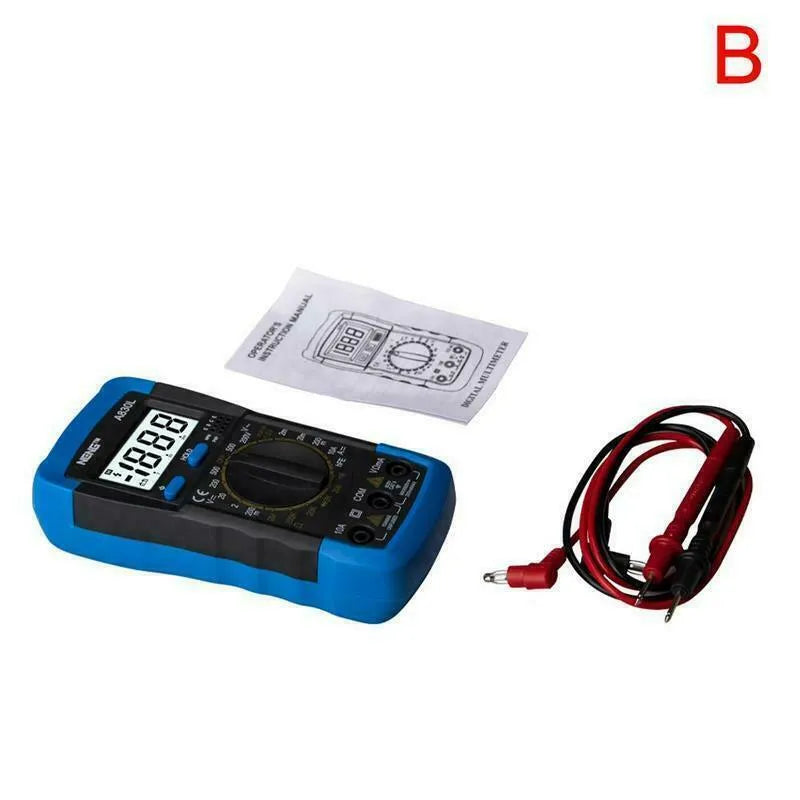

PACKAGE CONTENTS
What comes in the box
- 1 × XL830L Digital Multimeter
- 1 × Set of red and black probe cables
- 1 × Instruction manual
9 V battery is required for operation and is not included.
IMPORTANT USE INFORMATION
Use the correct range and input connection
Always select the appropriate measurement function and range before connecting the probes. Use the correct input terminals for the intended measurement and never exceed the limits stated in the product manual. Electrical testing should be performed only by users who understand the circuit and measurement being made.
